Fiber Distribution Hub Series
144-FDH

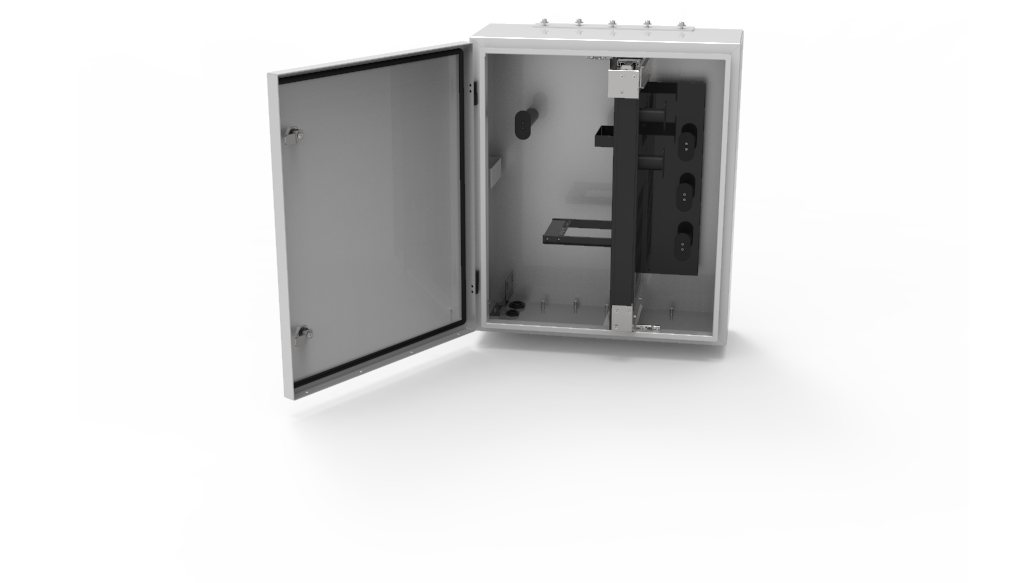

The 144 Port Fiber Distribution Hub (FDH) cabinet is a weather-tight, secure outdoor FDH cabinet line featuring custom integration options for fiber interconnection and distribution that suits nearly any network application.
144-FDH Models Available:
Specifications:
| Access: | Front |
| Dimensions: (H x W x D) |
26.00 x 22.70 x 11.00 (in) / |
| Weight: | 55.00 (lbs) / 24.95 (kg) |
| Cabinet Material: | Lightweight, welded aluminum, powder coated |
| Powder Coating: | Yes |
| Max Feeder Ports: | 24 |
| Cable Entrances: | 4 |
| Splitter Slots: | 5 |
| Splitter Type: | 1×32 or others by request |
| Connectory Type: | SC/UPC, SC/APC (LC/UPC, LC/APC by request) |
| Tail Length: | 100′ or more by request |
| OSP Tail Count: | 144F |
| Feeder Tail Count: | 24 |
Features:
| Lift Brackets: | No |
| Door Locks: | Yes |
| Door Alarm: | No |
| Mounting Options: | Wall, H-frame, or pole |
- Data Sheet: FDH 144, Standard Enclosure
- Data Sheet: FDH 144, BABA Compliant Enclosure
- Designed to meet outside plant (OSP) environment demands
