Fiber Distribution Hub Series
864-FDH

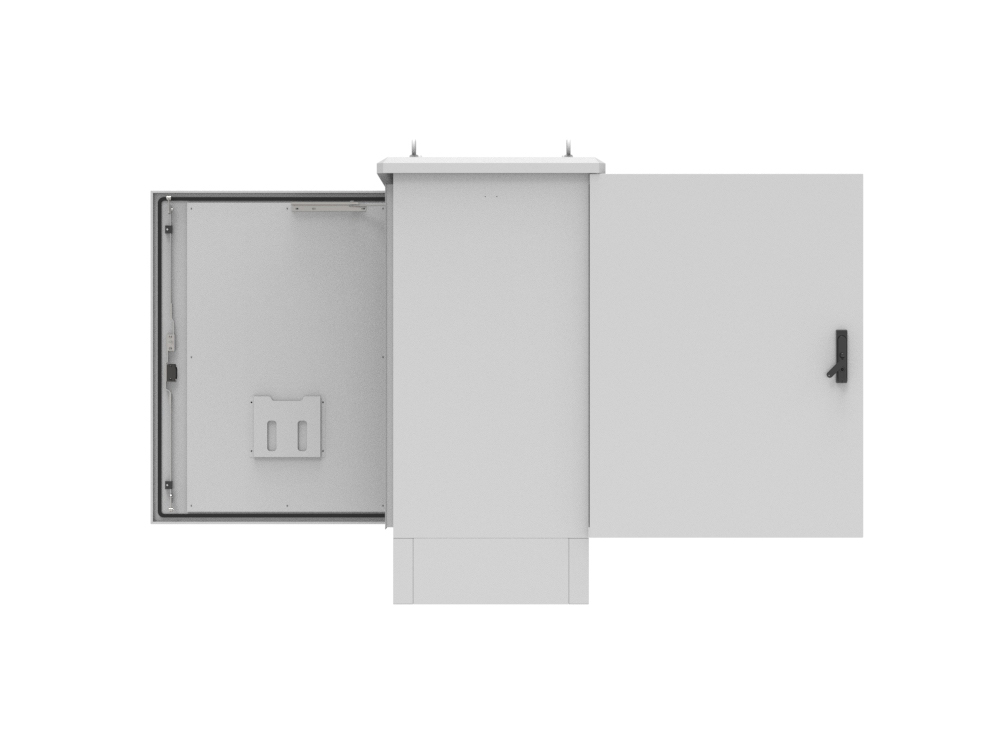

The 864 Port Fiber Distribution Hub (FDH) cabinet is a weather-tight, secure outdoor FDH cabinet line featuring custom integration options for fiber interconnection and distribution that suits nearly any network application
864-FDH Models Available:
Specifications:
| Access: | Front and rear |
| Dimensions: (H x W x D) (with plinth) |
53.10 x 34.10 x 27.20 (in) / 135.00 x 86.50 x 69.00 (cm) |
| Weight: | 350.00 (lbs) /158.76 (kg) |
| Cabinet Material: | Stainless steel, powder coated |
| Powder Coating: | Yes |
| Max Feeder Ports: | 128 |
| Cable Entrances: | 10 |
| Splitter Slots: | 36 |
| Splitter Type: | 1×32 or others by request |
| Connectory Type: | SC/UPC, SC/APC, or other (LC/UPC, LC/APC) by request |
| Tail Length: | 100′ or more by request |
| OSP Tail Count: | (2x) 144F and (2x) 288F |
| Feeder Tail Count: | 96 |
Features:
| Lift Brackets: | No |
| Door Locks: | Yes |
| Temperature Alarm: | No |
| Tech on Site Alarm: | No |
| Door Alarm: | NO |
| Mounting Options: | Pad or vault |
- Data Sheet: FDH 864, Standard Enclosure
- Data Sheet: FDH 864, BABA Compliant Enclosure
- Designed to meet outside plant (OSP) environment demands
